Axicon 6025-S Linear (1D) High Speed Point of sale Barcode Verifier

The Axicon 6025-S is designed to verify small linear barcodes (with a maximum length, including quiet zones, of 66 mm) typically used on products scanned at the retail point-of-sale, or pharmaceutical products scanned at the point-of-care. These barcodes include EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, HIBC, GS1 DataBar, GS1-128, CIP 39 and Laetus Pharmacode.

This verifier is perfect for product manufacturers, label printers, printers and packagers, and pre-press studios.

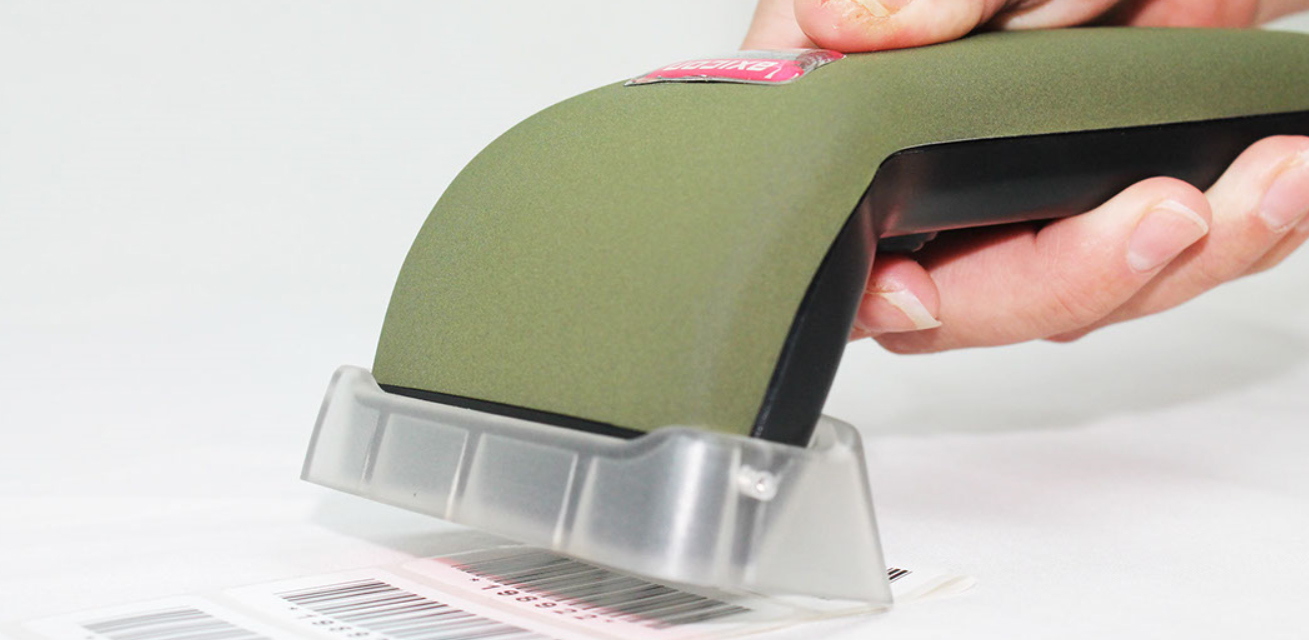

The S range of Axicon verifiers has a continuous scan feature, which means that obtaining at least ten different readings throughout the height of the barcode (as required by ISO/IEC) is much faster. Simply place the verifier slightly above or below the barcode, press the trigger and slide the verifier over the code in less than a second you can have results of up to 100 scans of the code at different points in the bar height.

Features & Benefits

• ISO/IEC verification with ANSI option
• traditional verification
• symbology auto-discrimination
• automatic variable aperture
• scan saving and loading
• static reflectance meter
• display of x-dimension and magnification
• individual bar and space dimensional analysis.
• Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN
• A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant.
• Aperture automatically switchable between aperture reference numbers 03, 05, 06, 10 and 20.

The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
